ACR Pancake Coil
Cleaned and capped coil for air-conditioning and refrigeration systems.
Annual Star Pte. Ltd. supplies premium pipes, fittings, flanges, bars, fasteners and copper products for global industries.
Annual Star Pte. Ltd. supplies premium pipes, fittings, flanges, bars, fasteners and copper products for global industries.
Common banner, rich product data, specifications, materials, types, dimensions and applications.

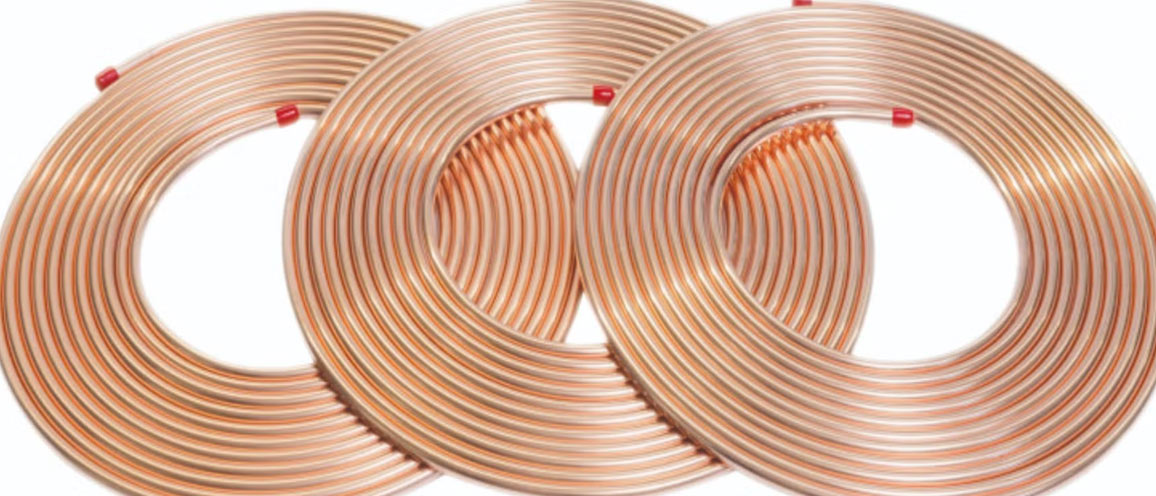

Soft annealed pancake coils for HVAC, refrigeration and compact installation routes. Annual Star Pte. Ltd. supports bulk, project and urgent supply requirements with practical documentation and logistics coordination.
Project-ready imperial and metric sizes with cut-length support
ASTM B88, B280, B111, B75, B187, EN 1057, EN 12735
Soft annealed, half hard, hard drawn and project-specific temper
High thermal and electrical conductivity grades available
Mill finish, drawn, polished, degreased, cleaned and capped
C101, C102, C110, C122, Cu-Ni 90/10, Cu-Ni 70/30, Brass, Bronze

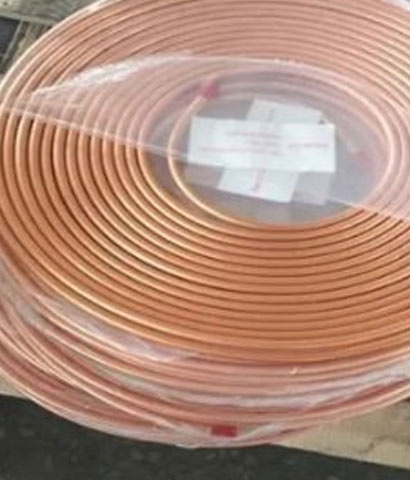

Cleaned and capped coil for air-conditioning and refrigeration systems.

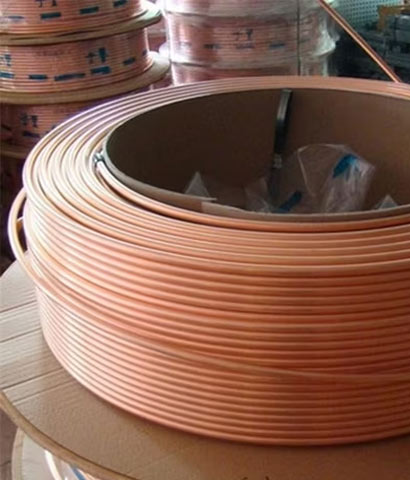

Annealed coil for water supply and compact installation routes.
Pre-insulated coil options for HVAC line sets.
| Size / Type | OD / Range | Schedule / Class | Thickness / Grade | Standard | Length / Finish |
|---|---|---|---|---|---|
| 1/4 in | 6.35 mm OD | ASTM B280 | 0.76 - 0.89 mm | C12200 | 15 m / 30 m |
| 3/8 in | 9.52 mm OD | ASTM B280 | 0.81 - 0.89 mm | C12200 | 15 m / 30 m |
| 1/2 in | 12.70 mm OD | ASTM B280 | 0.81 - 1.02 mm | C12200 | 15 m / 30 m / 50 ft |
| 5/8 in | 15.88 mm OD | ASTM B280 | 0.89 - 1.02 mm | C12200 | 15 m / 30 m |
| 3/4 in | 19.05 mm OD | ASTM B280 / B88 | 0.89 - 1.24 mm | C12200 | 15 m / 30 m |
| 7/8 in | 22.22 mm OD | ASTM B280 | 1.02 - 1.24 mm | C12200 | 15 m / 30 m |
| 1 in | 25.40 mm OD | ASTM B88 | 1.07 - 1.65 mm | C12200 | Project coil |
| Custom | As required | Project spec | As required | As required | As ordered |
